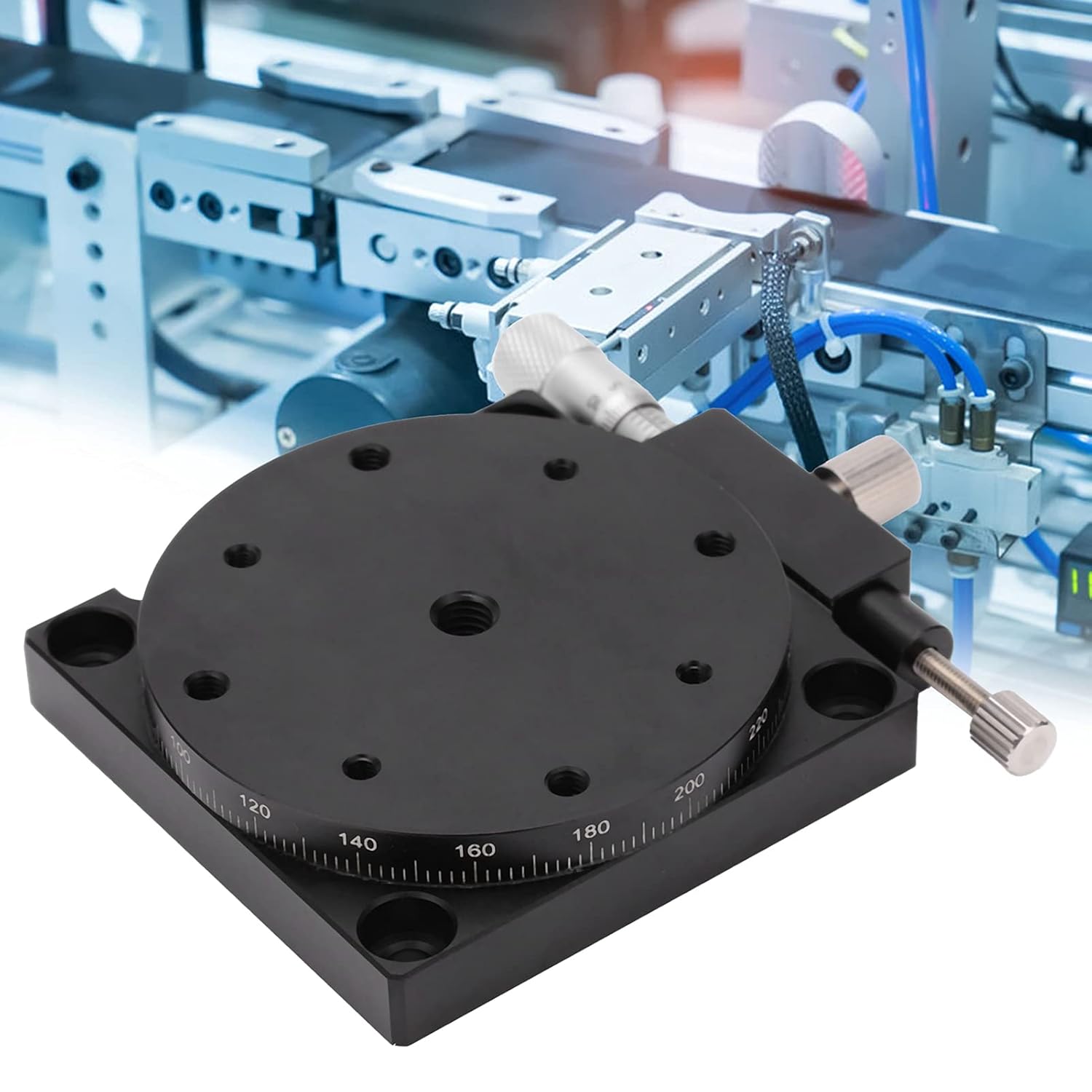

Manual Displacement Platform R Axes Rotating Linear Stage 360 Degrees Sliding Table with 60mm RS60,L for Precision Machining and Fabric Clamping Applications

Item Type: Manual Displacement PlatformMaterial: Aluminum alloyTable Diameter: Approx. 60mm / 2.4inMovement Mode: RS rotation R axesStroke: 360 Degree coarse adjustmentFine Adjustment: ±5°Load: 29.4N (3kgf)Minimum Scale: 2 DegreesConcentricity: 0.03mmTable Type: Manual sliding tableInstallation Method: 1. Use the countersunk holes on the base to install the platform. 2. Rotate the work surface to make the screw through holes and the countersunk head on the base concentric. 3.Then you can fix it with screws and repeat the left side, then the platform can use 4 countersunk holes fixed.

• 1. (Precision Engineering)This manual displacement platform features cross,roller guide rails that ensure high accuracy and stable movement, making it ideal for precision machining and fabric clamping. Users can easily fix the platform to their machinery or instruments, allowing for reliable and repeatable positioning in various applications.
• 2. (Lightweight Design)Constructed from aluminum alloy, this sliding table is lightweight yet robust, making it suitable for integration with other built,in equipment. Its portability allows users to easily transport and set up the platform in different work environments, enhancing productivity without compromising on strength.
• 3. (Ultra,Precise Adjustments)The micrometer drive mode offers ultra,accuracy, enabling users to adjust the angle of the platform with precision. The thickness adjustment switch screw allows for fine,tuning, ensuring that every movement is exact. This feature is particularly beneficial for tasks requiring meticulous positioning, such as sewing and fabric manipulation.
• 4. (Versatile Applications)Designed for high accuracy and medium load, this sliding table is for various production machinery, inspection devices, and applications requiring accurate positioning and quantitative movement. Whether you're in manufacturing or crafting, this platform meets diverse al needs with ease.
• 5. (Customizable Movement Options)With a variety of sliding table types available, including single axes, dual axes, z axes, c axes, and r axes, users can customize their setup to fit specific project requirements. The platform also offers diversified feed methods, such as coarse and fine movement handles, ensuring flexibility and control over movement values for optimal performance.
